Composite Pin Insulator

Name: China Composite Pin Insulator Manufacturers, Suppliers and Factory - Made in China - Gaodian Tech.
Brand: Gaodian
SKU: 301294797
Price: 15.6 USD

$15.60 | 10 piece (Min.Order)

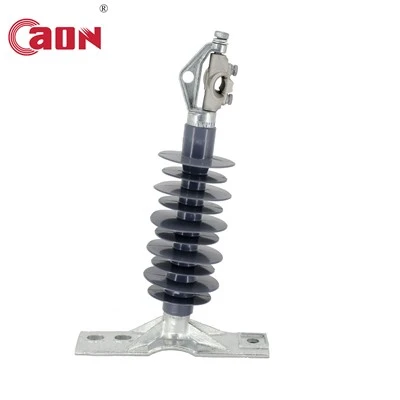

High-Performance Composite Pin Insulator provides electrical insulation between live conductors and grounded cross-arms or structures. High voltage 24kV,10kN pin insulators with M20 bolt

Send Inquiry

Add To Cart

Description

Technical Parameters

Gaodian Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of composite pin insulator in China. With abundant experience, we warmly welcome you to buy advanced composite pin insulator made in China here from our factory. We also accept customized orders.

Composite Pin Insulators are engineered for overhead distribution lines. Designed to replace traditional porcelain insulators, our products offer a lightweight, unbreakable, and highly reliable alternative for voltages ranging from 11kV to 36kV. Polymeric insulator is composed of epoxy resin fiberglass core rod, silicon rubber housing and galvanized metal fittings. It has advantages of high bending load, anti-pollution performance, long designed service life for up to 40 years and easy transporting.

Technical Specification

technical data of composite pin insulator

NO.	MODEL	HEIGHT (mm)	Creepage distance (mm)	Dry arc distance (mm)	SML (kN) cantilever Load	Power frequency wet withstand voltage (kV)	Lightning impulse withstand voltage (kV)
1	FP-24/10	304	760	240	10	70	150
2	FP-33/10-900	390	900	280	10	90	200
3	FP-33/10-1080	375	1080	400	10	90	200
4	FPS-15/10	286	410	170	10	45	95
5	FPS-33/11	555	1080	370	11	95	185

Product detail

Applicable standards: IEC61109, ANSI C29.18

Rated Voltage: 24kV ( 11kV, 15kV, 33kV, 36kV)

Cantilever Strength: 5kN, 10kN, 12.5kN (Customizable)

Color: Sky Grey(Customizable)

Core Material: ECR-Fiberglass rod

End Fittings: Hot-dip galvanized steel

Sheds material: HTV silicone rubber

Conditions Of Use

Item	Guaranteed value
Altitude	≤4000 m
Ambient Temperature	-40℃ ～ +40℃
Relative Humidity	Monthly average ≤90%; Daily average ≤95%
Sun Radiation Intensity	≤0.1 W/cm² (≤1.0 kW/m²)
Wind Speed	≤35 m/s
Ice Accretion Thickness	≤10 mm
Pollution Class	Class a ～ e
