Gaodian Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of fuse cut out 24 kv in China. With abundant experience, we warmly welcome you to buy advanced fuse cut out 24 kv made in China here from our factory. We also accept customized orders.
The working theory of a fuse cut out : under normal condition, the fuse link is tensioned to keep the fuse tube in the closed position. In case of a fault:
- The fuse link melts
- An electric arc is generated
- The arc-extinguishing tube produces gas to extinguish the arc
- The mechanism releases
- The fuse tube drops, completing protection and isolation.
Specifications
|
NO. |
MODEL |
Rated voltage (kV) |
Rated current (A) |
Breaking current (kA) |
Creepage distance (mm) |
Power frequency wet withstand voltage (kV) |
Lightning impulse withstand voltage (kV) |
|
1 |
HRW12-27/100 |
24-27 |
100 |
6.3 |
600 |
60 |
125 |
|
2 |
HRW12-27F/100 |
24-27 |
100 |
6.3 |
600 |
60 |
125 |
|
3 |
HRW12-27/200 |
24-27 |
200 |
12 |
600 |
60 |
125 |
|
4 |
HRW12-15/100 |
10-15 |
100 |
6.3 |
420 |
45 |
110 |
|
5 |
HRW12-15F/100 |
10-15 |
100 |
6.3 |
420 |
42 |
110 |
|
6 |
HRW12-15/200 |
10-15 |
200 |
12 |
420 |
42 |
110 |
|
7 |
RW12-36/100 |
33-36 |
100 |
6.3 |
720 |
70 |
170 |
|
8 |
RW12-36F/100 |
33-36 |
100 |
6.3 |
610 |
70 |
150 |
|
9 |
RW12-36F/200 |
33-36 |
200 |
12 |
610 |
70 |
150 |
Product detail
Name and Voltage : fuse cut out 24kV
Original: Zhejiang, PRC
Material: porcelain insulator body
Color: grey (white or customizable)
Warranty: 2 years
MOQ: 1 set
Manufacturing standard: IEC60282-2, IEEE Std C37.41-2008 & IEEE Std C37.42-2009
Operating condition
a) Ambient air temperature: maximum +40℃, minimum -30℃;
b) Altitude not exceeding2000 m;
c) Maximum wind speed not exceeding 35 m/s;
d) No frequent severe vibration.

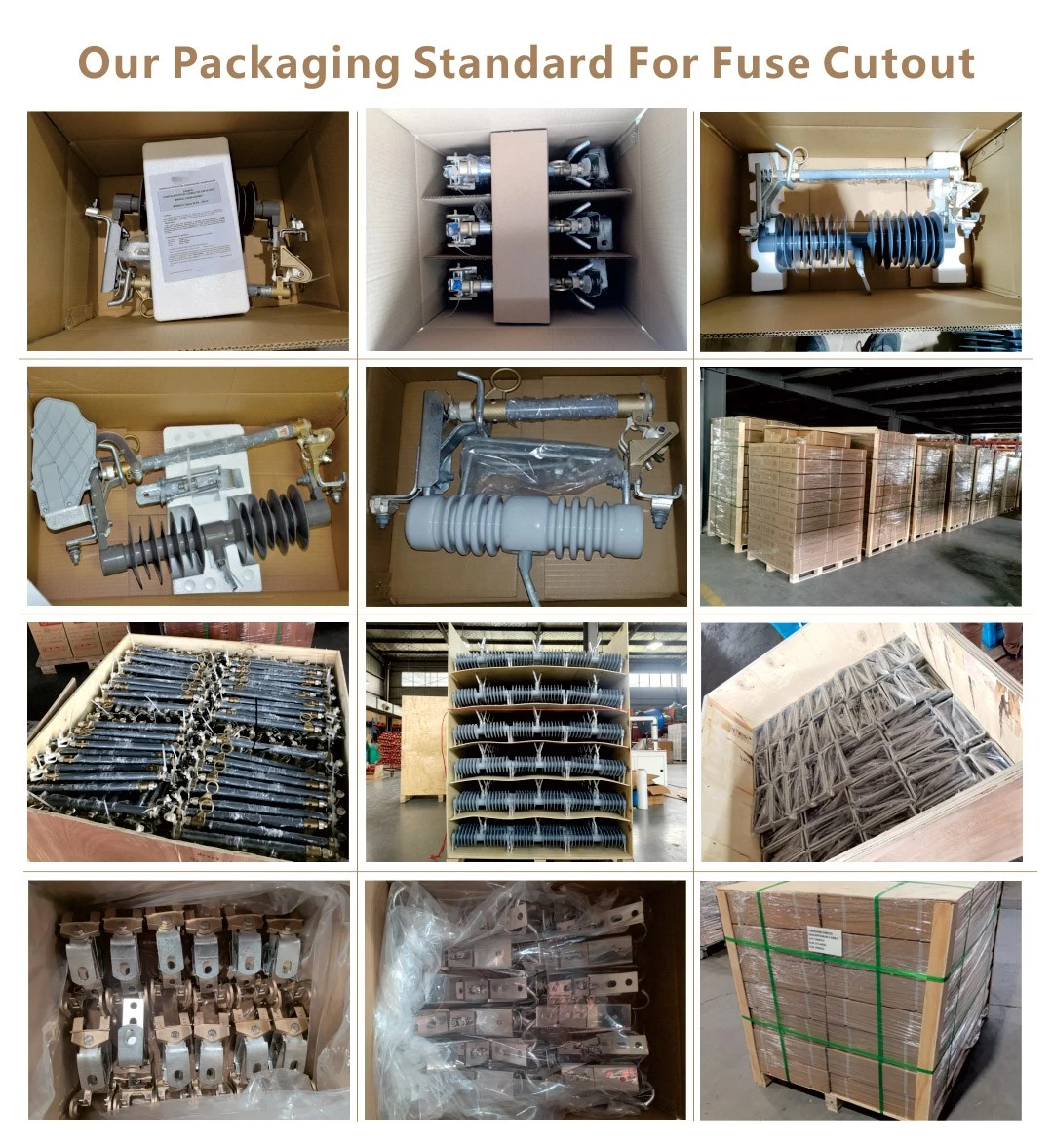

Packaging & Delivery

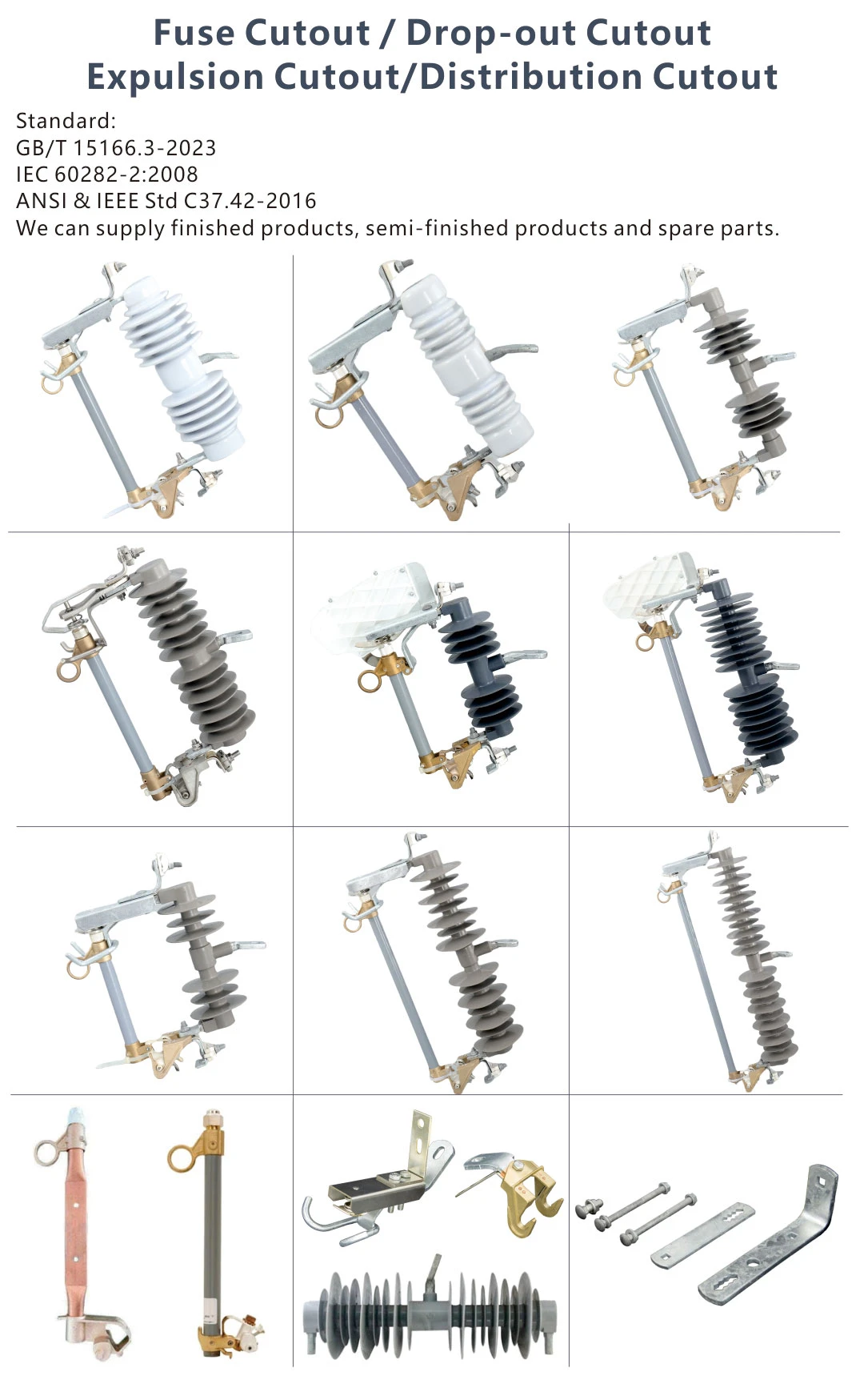

Our similar products

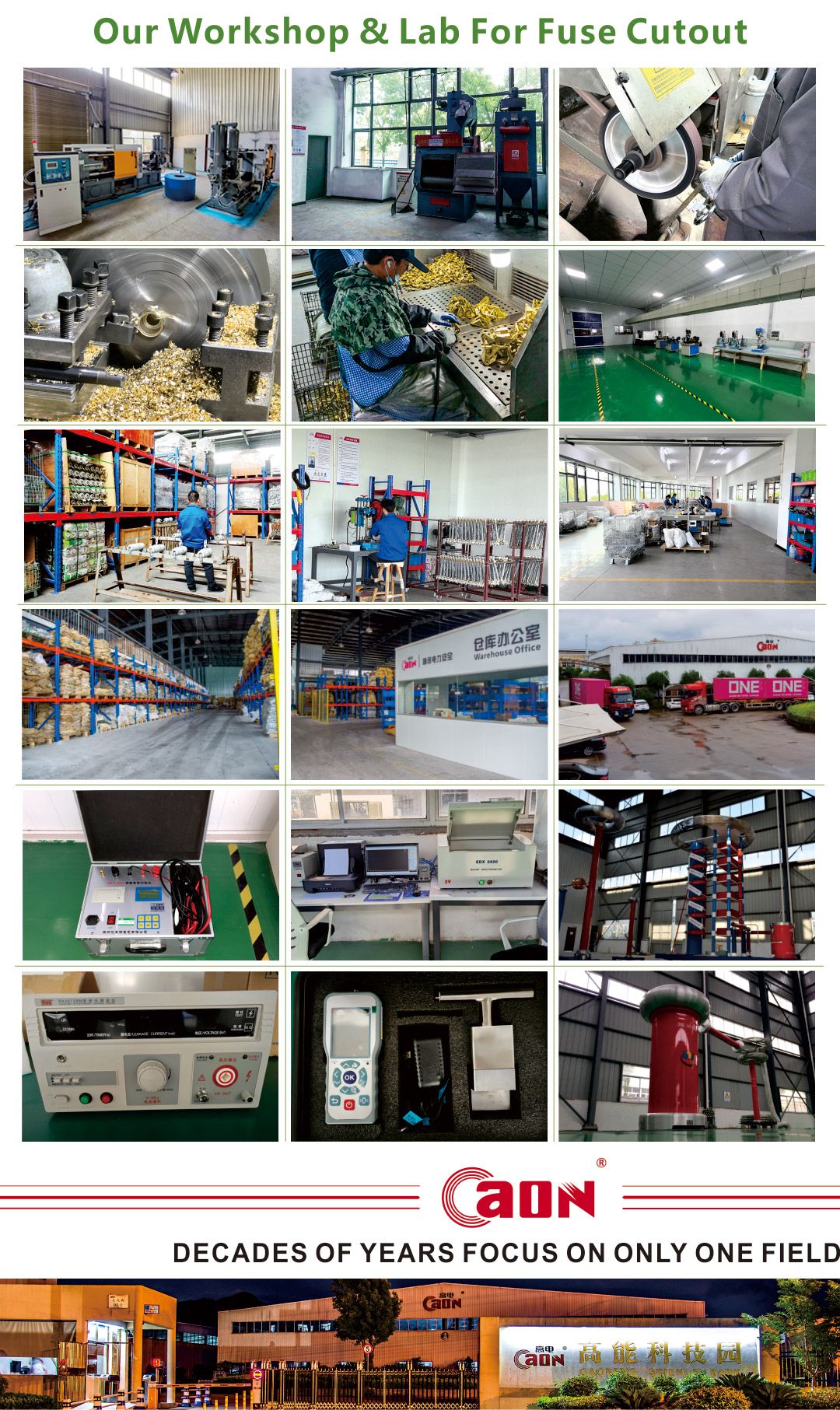

Company strength
Why Choose Us?
Experienced --Our company have experiences of more than 15 years, focusing on manufacturing high voltage electrical products. The staff in our factory are also skilled because of years of training.
Customized
We are the manufacturer, sample &OEM&ODM are available!
Safety
We have test equipment in our own lab, each of our products will be tested in the factory before selling.
Certification
We have test reports from national labs and ISO certifications.
Competitive price
We own the land, we manufacture accessories, we make finished products!
