Outdoor Drop Out Fuse

Name: Outdoor Drop Out Fuse - China Outdoor Drop Out Fuse Manufacturers Suppliers Factory - Gaodian Tech.
Brand: Gaodian
SKU: 303039824

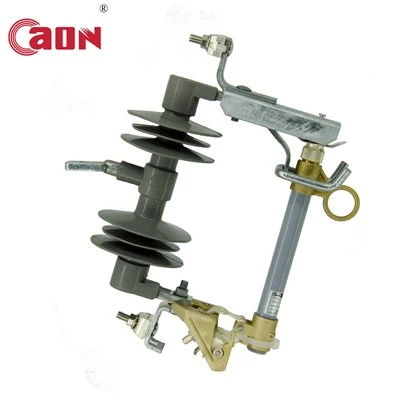

Outdoor Drop out Fuse | 24kV Outdoor Dropout Fuse Cutout for Transformer Protection

Send Inquiry

Add To Inquiry

Description

Technical Parameters

Gaodian Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of outdoor drop out fuse in China. With abundant experience, we warmly welcome you to buy advanced outdoor drop out fuse made in China here from our factory. We also accept customized orders.

High-Voltage outdoor drop out fuse is a core protection device for distribution transformers high voltage side and overhead lines. This polymer fuse cutout provides reliable protection against overloads and short circuits.

Technical Specifications

We provide a range of voltage and current ratings to meet specific requirements.

NO.	MODEL	Rated voltage(kV)	Rated Continuous current(A)	Breaking current(kA)	Creepage distance(mm)	Power frequency wet withstand voltage(kV)	BIL(kV)
1	HRW-15/100	15	100	8	420	45	110
2	HRW-27/100	27	100	6.3	600	60	125
3	HRW-38/100	38	100	6.3	1080	75	170
4	HRW-15/200	15	200	12.5	420	45	110
5	HRW-27/200	27	200	10	600	60	125
6	HRW-38/200	38	200	8	1080	75	170

Key Advantages

Polymer Insulator sheds

Consisted with Our Silicon rubber sheds feature a design for big creepage distance and hydrophobicity, resistance to environmental pollution.

Extinction Tube

The structure of tube ensures fast arc extinguishing and maintains mechanical strength, even after multiple operations.

Smooth drop-out

The toggle-joint and spring-loaded lower mechanism are engineered for a smooth "drop-out" action. It provides a clear visual indication.

Heavy-Duty Conductive System

All contact surfaces are silver-plated Copper/Brass. The contacts maintain low resistance and high conductive efficiency.

Product structure

Insulation Type	Composite Insulator (HTV Silicone Rubber)
Top Cap	Hot-Dip Galvanized To A Thickness Of 86ΜM Or More; Base Material Thickness: 3mm
Upper Contact Blade	Silver-Plated To 3ΜM; Base Material Thickness: 2mm
Upper Moving Contact, Lower Bushing, Lower Support	Brass
Fuse Tube	Glass Fiber Reinforced Epoxy Tube
Trip Hook & Retaining Tab	Brass
Pressure Relief Cap	Silver Plated
Terminal, Contact Plate	Silver Plated High Purity Copper
Spring	Stainless Steel

Why Choose Polymer Over Porcelain?

We use high-grade polymer (silicone rubber over FRP fiberglass rod) instead of traditional porcelain

70–80% lighter - easier to carry, install, and replace on poles
Shock & impact resistant - won't crack or break from vibration, or minor bumps
Great weatherproofing - UV-stable, waterproof, and stays hydrophobic (repels water) even after years outside
Low maintenance - doesn't need regular cleaning
Anti-corrosion hardware - hot-dip galvanized steel parts guarantee the corrosion resistance

Our workshops and testing facilities

workshops for fuse cutout001

Packing & Shipping

Delivery method: By sea or by air if needed

We use reinforced export-grade packaging with exceptional shock absorption. Designed for the rigors of international transit, our crates and cartons provide a shield against collisions, moisture, and mechanical stress during sea and land transport.
