Gaodian Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of post insulator polymer in China. With abundant experience, we warmly welcome you to buy advanced post insulator polymer made in China here from our factory. We also accept customized orders.
Composite Post Insulators are high-performance electrical insulation components designed for medium and high voltage overhead power distribution systems. They combine a fiberglass reinforced polymer (FRP) core rod with a high-quality HTV silicone rubber housing, providing excellent electrical insulation, mechanical strength, and environmental resistance.

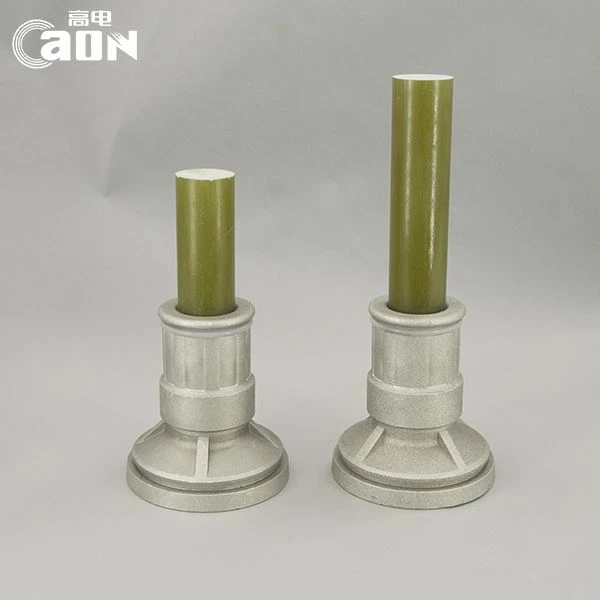

Our company manufactures finished post insulator polymer and also provides semi-finished product services for clients. We crimp the fiberglass core rod and the metal fittings together to export them as semi-finished goods according to the customer's requirement. This allows clients who has their own factories to simply perform the final vulcanization step to create their own finished products; by doing this helps reduce tariffs on finished goods in certain countries and increases profit for the client.
Technical Specification
|
No. |
Model |
Core Diamater (mm) |
Base Diameter (mm) |
Core Length (mm) |
Tension Load(kN) |
Bending Load(kN) |
Total Structure Length(mm) |
|
1 |
LP9 |
32 |
95.13 |
127 |
26.7 |
13.4 |
177.8 |
| 2 |
LP11 |
32 |
95.13 |
178 |
26.7 |
13.4 |
228.8 |
Product structure
Material & Technology
Component
Material
Core rod
ECR fiberglass core rod
Metal Fittings
Aluminum Alloy ADC12
ECR fiberglass core rod -- made by us
ECR (E-Corrosion Resistant) epoxy fiberglass core rod is made of boron-free ECR glass roving reinforced high-temperature epoxy via continuous pultrusion. Superior acid & salt spray corrosion resistance effectively prevents brittle fracture under stress, ideal for coastal, industrial polluted, DC transmission and railway overhead lines. We manufacture this core rod in house with our own facilities, we cut them into needed sizes and lengths according to users. We also test every lot of core rod since we have our own testing machine.
Metal fittings-- made by us
All metal fittings of our line post insulators adopt hot-dip galvanized steel technology. Thick and uniform zinc alloy coating provides reliable anti-rust and anti-corrosion performance under coastal salt spray, industrial pollution and rainy weather. The sacrificial zinc layer protects steel substrate even with minor surface abrasion, ensuring long-term stable operation of overhead power lines. But this time, we use different material according to customer's will, we use Aluminum Alloy ADC12, we have our own molding to support any required materials.
key features
|
applications
Medium voltage distribution lines
Utility pole networks
Industrial power supply systems
Renewable energy distribution
Operating Conditions
1) Ambient temperature: -40°C to +50°C
2) Outdoor installation under various climatic conditions
3) Suitable for coastal, industrial, and high-pollution environments
4) Excellent resistance to UV radiation, moisture, and temperature changes
5) Designed for reliable operation in medium voltage distribution systems
6) Custom solutions available for special environmental requirements
Standards & Certifications
IEC Standards：IEC 61952:2008;IEC 61952-1:2019
ANSI Standards：ANSI/NEMA C29.17-2022
Type Test: Available( please contact us)
manufacturing and testing facilities
Packaging & Delivery
Payment Term: TT, L/C
Price Term: FOB, CIF, CFR
Delivery Method: By ocean, Air or Overland
Packing: Cartons, Pallet, Export Standard
What information is needed for quotation?
System voltage (kV)
Mechanical load requirement (kN)
Creepage distance (mm)
Installation type
Quantity
FAQ
Q: How long is the service life of Post Insulator Polymer ?
A: High-quality Polymer Post Insulators can provide more than 30 years of reliable service under normal operating conditions.
Service life depends on: Environmental conditions, Electrical stress, Mechanical loading, Installation quality, Maintenance practices
Q: How do you ensure the quality of Polymer Post Insulators?
A: Each product undergoes strict quality control, including:
Visual inspection
Dimensional inspection
Mechanical load testing
Interface sealing inspection
Electrical performance testing
The production process ensures consistent quality and long-term field reliability
Q: Why choose a Polymer Post Insulator for modern power grids?
A: Lightweight design,High mechanical strength,Excellent pollution resistance,Low maintenance requirements,Long-term outdoor reliability, They are ideal for grid upgrades, new distribution projects
