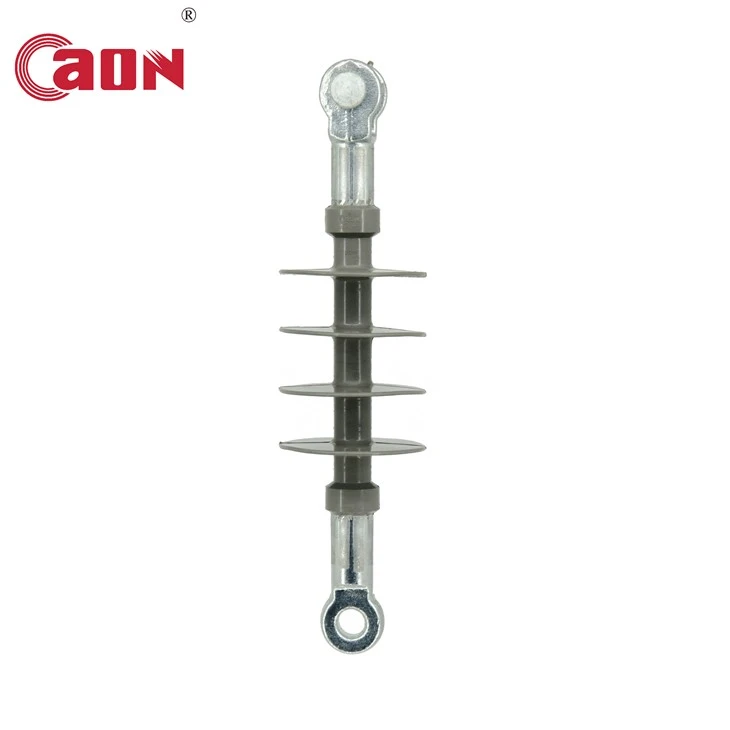

Transmission Suspension Composite Insulator
Description
Technical Parameters
Gaodian Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of transmission suspension composite insulator in China. With abundant experience, we warmly welcome you to buy advanced transmission suspension composite insulator made in China here from our factory. We also accept customized orders.
Introduction

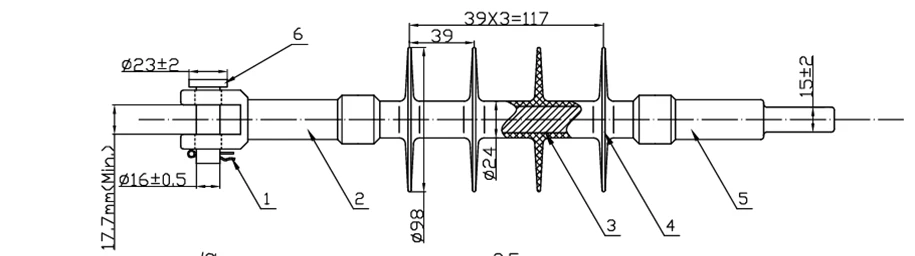

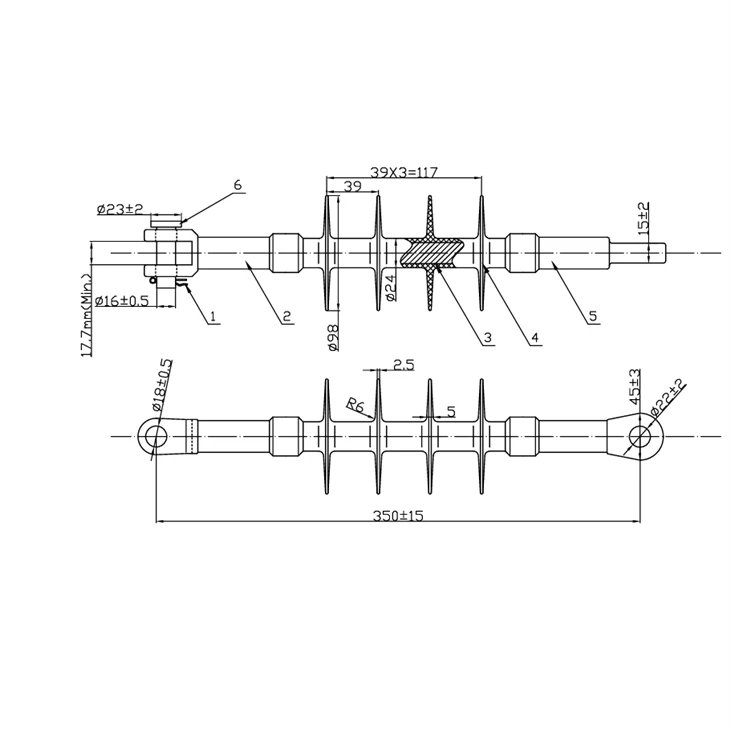

A composite suspension insulator consists of three main components:
High-Strength FRP Core
The fiberglass reinforced epoxy core rod carries the main mechanical load of the insulator. It is designed to withstand the tensile forces generated by conductors and line structures.
HTV Silicone Rubber Housing
The housing and sheds are manufactured from high-temperature vulcanized silicone rubber. Its hydrophobic surface helps water form droplets rather than a continuous water film, supporting reliable insulation performance in wet and contaminated environments.

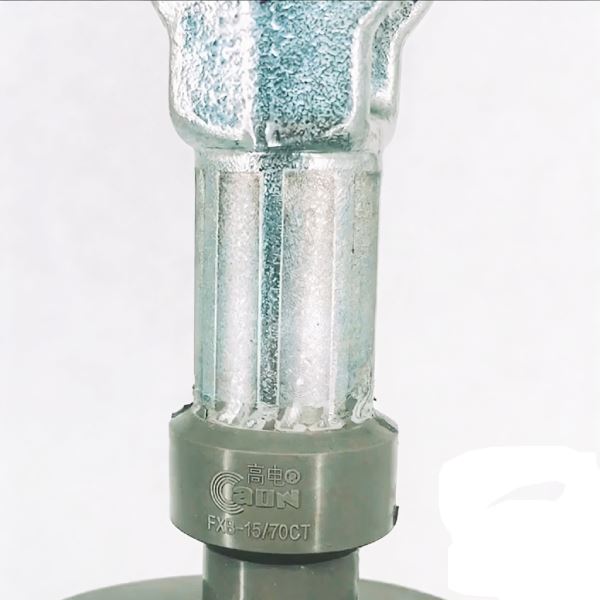

Metal End Fittings

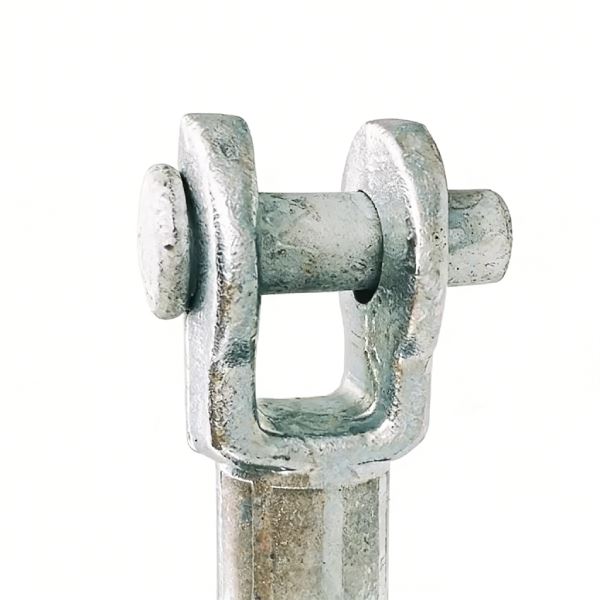

Galvanized steel end fittings provide the mechanical connection between the insulator, conductor hardware and transmission tower. Different configurations such as ball & socket, clevis & tongue and other customized fittings are available.
IEC 61109:2025 defines composite suspension and tension insulators for overhead lines as products consisting of a load-bearing fiber/resin core, polymeric housing and permanently attached metal end fittings.
specification
|
NO. |
MODEL |
Length (mm) |
Minimum Creepage Distance(mm) |
Dry arc distance(mm) |
Specified Mechanical Load(kN) |
Power Frequency Wet Withstand Voltage(kV) |
Lightning Impulse Withstand Voltage(kV) |
|
1 |
FXB-15/70CT |
365 |
535 |
250 |
70 |
42 |
95 |
|
2 |
FXB-24/70 CT |
450 |
760 |
335 |
70 |
70 |
155 |
|
3 |
FXB-35/70CT |
640 |
1280 |
500 |
70 |
95 |
230 |
|
4 |
FXBW-66/70 CT |
890 |
2000 |
745 |
70 |
185 |
410 |
Main Materials
Core: Epoxy resin fiberglass / ECR rod
· Housing: HTV silicone rubber
· End fittings: Galvanized steel
· Connection: Ball & Socket, Clevis & Tongue, or customized
· Color: Grey or customized
Key Advantages
Lightweight Construction than porcelain insulator
Silicone rubber housing provides a water-repellent surface
hydrophobic silicone rubber surface is suitable for coastal, industrial, dusty and other complicated environments.
High Mechanical Strength to bear tensile strength
Good Weather Resistance
The silicone rubber housing is designed for outdoor exposure, UV resistance.
our certificate
Quality Assurance
Quality is not only checked at the end of production.
Incoming Material Inspection
Core rods, silicone rubber materials and metal fittings are checked before entering production.
Manufacturing Control
Key production processes are monitored internally to maintain product consistency.
Mechanical Testing
Finished products are checked according to the applicable mechanical requirements.
Visual Inspection
The silicone rubber housing and shed profile are inspected to identify visible defects before shipment.
Tightness Inspection
The connection between the metal fitting and silicone rubber housing is inspected to help prevent moisture ingress.
Final Inspection
Transmission suspension composite insulator are checked before packing and shipment to ensure they meet the agreed specifications.
Our strength
Packaging & Shipping
Products can be packed in:
- Export cartons
- Wooden pallets
- Reinforced packaging
- Customized packaging according to customer requirements
Additional protection can be arranged for long-distance sea transportation, land transportation or mixed transportation.
Shipping Methods
We support Sea freight, Air freight , Overland transportation
FAQ
Q: Do you provide test reports?
A: Yes. Test reports and certification documents can be provided according to the product and project requirements.
Q: How do you test each insulator?
A: Our routine quality-control process includes visual inspection, mechanical load testing and tightness inspection before shipment.
Q: How are the products shipped?
A: We normally ship by sea for commercial orders, while air and overland transportation can also be arranged according to the customer's requirements.
Q: What information is needed for a quotation?
A: To prepare an accurate quotation, please provide:
Rated voltage
Mechanical load / SML
Creepage distance
Overall length
End-fitting type
Quantity
Applicable standard
